XL’AIR grilles

XL’AIR is a new-generation warm air circulation system, offering a very large air inlet (up to 900cm²) for a compact surface area on the external wall.
It can be used for both convection and distribution.

XL-AIR-700-visite-facilitée
page-grilles-xl-air-systeme

Advantages of the system:

  • Contemporary: solid front panel for complete closure of the interior of the casing
  • Can be installed vertically or horizontally depending on the architecture of the casing
  • Matte black finish for long-lasting integration into the heating space

Highly technical

  • Fastened with 4 eccentrics for simplified installation and easy tightening
  • Removable front panel (installed with clips) serving as an access panel
  • Easy to install and remove
XL-AIR-700-4_1-facile-poser
XL-AIR-700-5-buselot

Suitable for all fireplaces

  • Can be used for both distribution and convection
  • Compatible with Promat Structura® HD or Placo® enclosures
  • Option to integrate four Ø150 ducts (for the 700cm² air inlet version)

Compliant with current standards

  • Complies with the air inlet requirements recommended by NF DTU 24.2.
  • Allows inspection and maintenance of the hood.

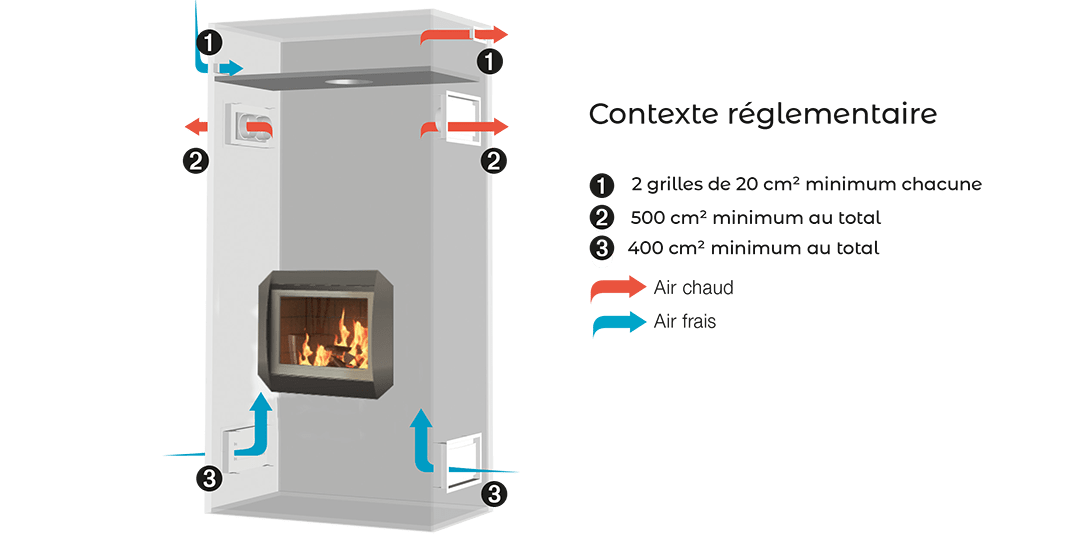

    NF DTU 24.2 stipulates minimum air inlet dimensions (see diagram opposite).
    However, it is essential to refer to the appliance manufacturer’s instructions.
circulation-air

Installation des grilles de circulation d'air pour cheminée XL'AIR

XL'AIR est une grille de passage d'air nouvelle génération et brevetée offrant un très grand passage d’air (jusqu’à 900 cm²) pour des dimensions en façade réduites, elle est utilisable en convection et en diffusion.
